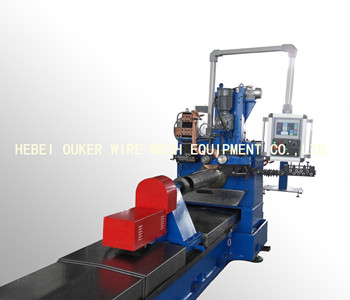

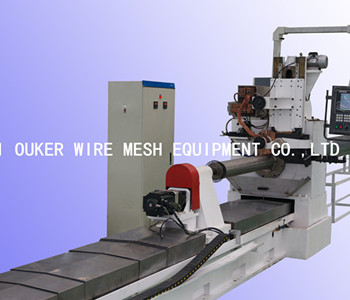

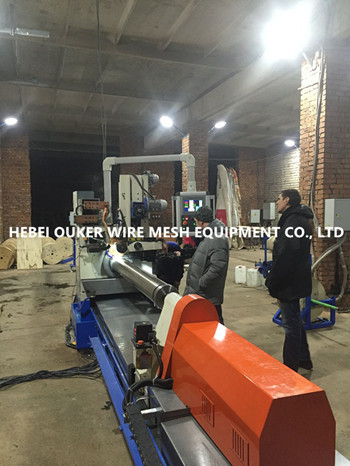

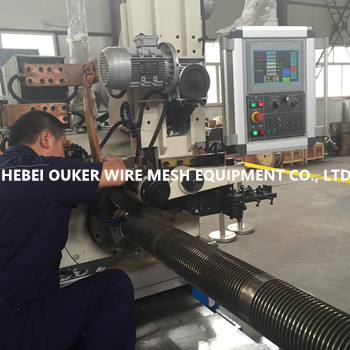

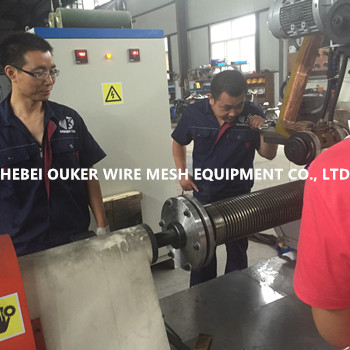

NC Wire mesh welding machine / wire wrapped screen pipe welding machine, NC Johnson Screen welding machine, wedge wire screen machine.

1.Tube diameterФ30mm-Ф300mm.
2.The maximum length of screen is 12000mm,in this range,you can produce tube as your requirements.
3.Screen slit gap can be adjusted according to the requirements(in the case of parking or not), range:0.05mm-40mm.
4.Tolerance clearance ±0.01mm.
5.Maximum speed of spindle:80rpm.
6.Servo motor,motor power:13kw two motor,and  4.5kw one motor.
7.Transmission medium adopts Using linear guide and ball screw.
8.Welding transformer :200kVA.
9.We offer three sets of tooling for free.The customer can choose which are between 30mm to300mm.

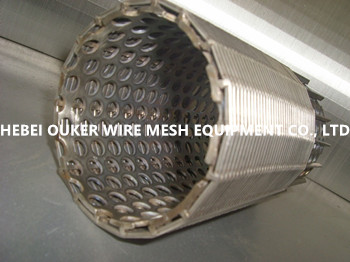

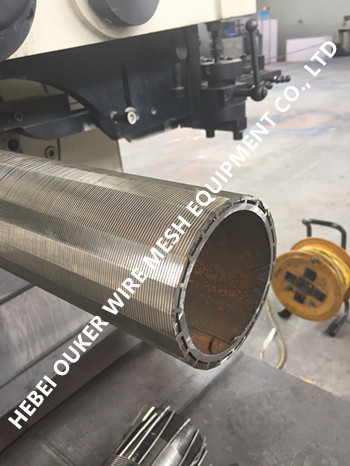

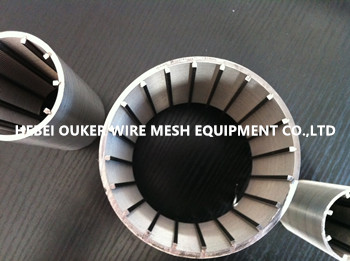

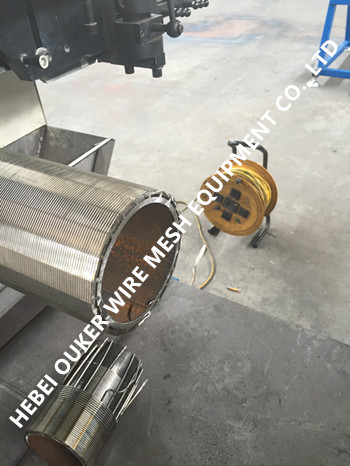

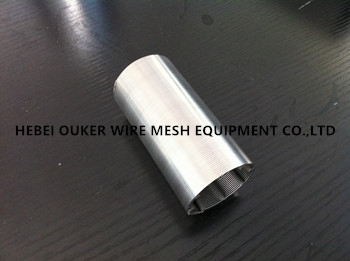

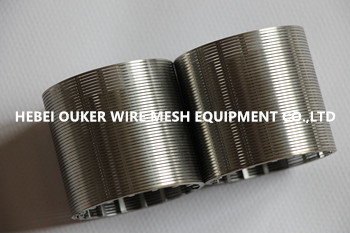

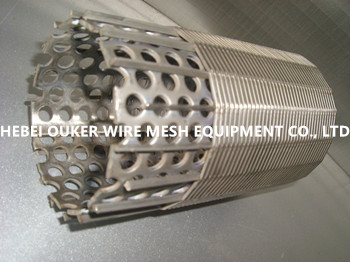

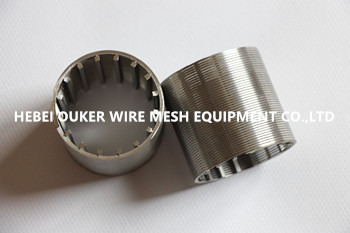

This equipment can be processed pure circular screen tube,perfect surface roundness,and no weld edges.
