Well screen without base pipe machine-V30 PLUS
WELL SCREEN WITHOUT BASE PIPE MACHINE - V30 PLUS
DESCRIPTION

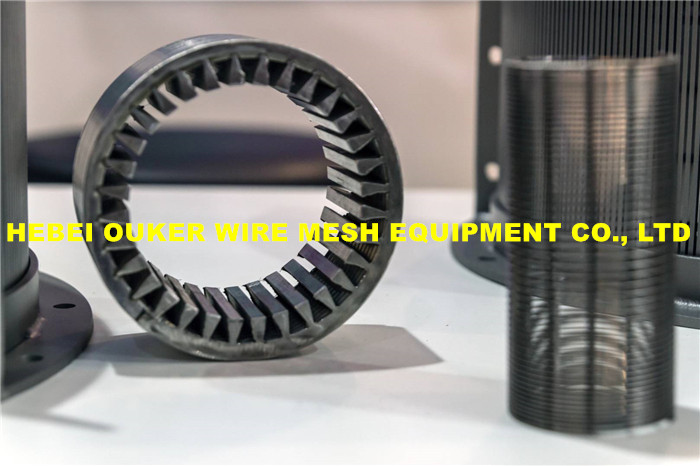

Well screen without base pipe is manufactured with spiral winding of profiled wire onto support rods connected by welding at each point of intersection.This type of screen has no base perforated pipe,while not conceding on the strength characteristics of slip-on screens with base pipe.
The filtration degree is determined by the slot size(from 100microns to 2000 microns).
Well screen without the base pipe are available in different sizes.
Underground gas storage
APPLICATION
Completion of Oil&Gas and Water wells: casing,open hole,open hole with gravel pack
Vertical,directional and horizontal wells
Sidetracking
BENEFITS
Ultrahigh strength and rigidity
Provide laminar flow of filtered fluid through the filer
Tight slot tolerance (+/- 15 microns)
Screen diameter range of 70mm to 1000mm
Providing minimum hydraulic resistance
Easy backwashing
The triangular profile wire greatly reduces the risk of screen clogging
Filter elements are made of stainless steel AISI 304,AISI316,etc.
