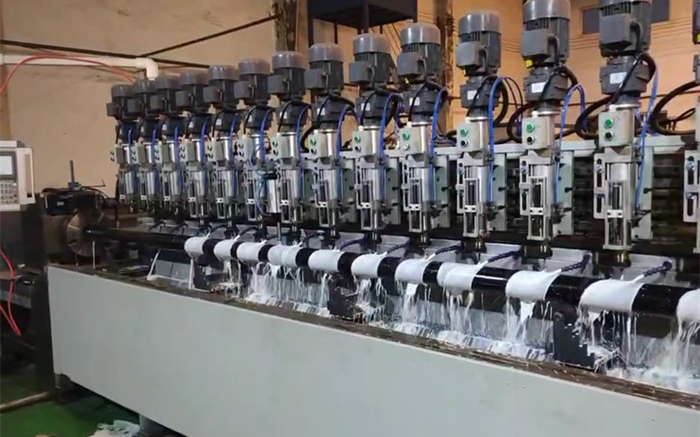

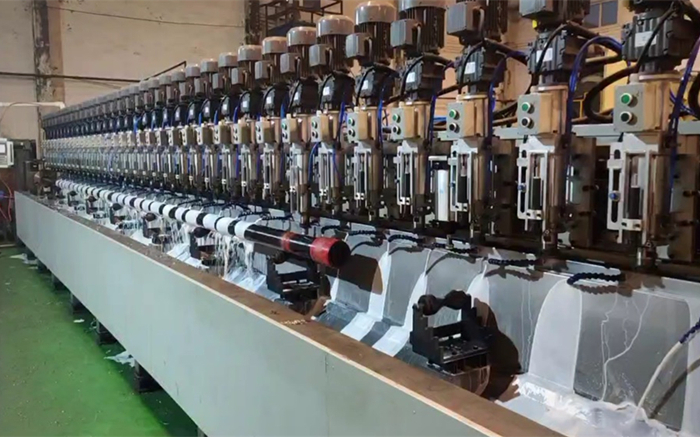

Muitispindle drilling machine

Machine Name: 36 Spindles ,NC Automatic

Features:

1. This machine can drill 36 holes at one time.

2. Suitable Maximum Tube Length: 12 meter

3. Diameter of the drilling hole: 0.375 to 1 inch

4. Suitable for Tube OD Range: 2-3/8 ~ 10-3/4  inch casing

5.Including auxiliary support for pipe transfer

Specifications:

1. Main Drilling Machine：with 36 drilling Spindles

2. Size: 13 meters long x2.0 meters wide x 2 meters high

3. Spindle distance  (can adjust):  300 mm

4. Total Horsepower : about 50 kw

5. Special Design Drilling Spindle Transmission Motor : 1.1kw x 36sets

6. Chain chip conveyor

7. Including machine outer guard
